HOYMILES HIONE BATTERY AUSTRALIA
Hoymiles Solar Battery Australia – HiOne Home Battery Storage & Installation
Store more of your solar energy for evenings, overnight use and selected power outages with the modular Hoymiles HiOne battery system.
Featuring an 8kWh LiFePO4 battery module, compatible single-phase and three-phase hybrid inverters, intelligent energy management and optional backup switching, HiOne is designed for flexible residential energy storage.
Battery capacity: 8–64kWh nominal in supported configurations. Price: tailored installation quote.
Request a Hoymiles Quote
Get a Hoymiles Battery Installation Quote
ADS Solar can discuss a suitable HiOne battery and inverter configuration based on your existing solar system, electricity use, switchboard and backup requirements.
- New solar and battery packages
- Battery storage and system expansion assessments
- Single-phase and three-phase options
- Backup load planning and installation advice
Servicing enquiries across Sydney, Melbourne, Brisbane, Adelaide and Canberra, subject to installation availability.
Request Your Free Quote
If the form does not display, add this shortcode in a WordPress Shortcode widget instead of the HTML widget.

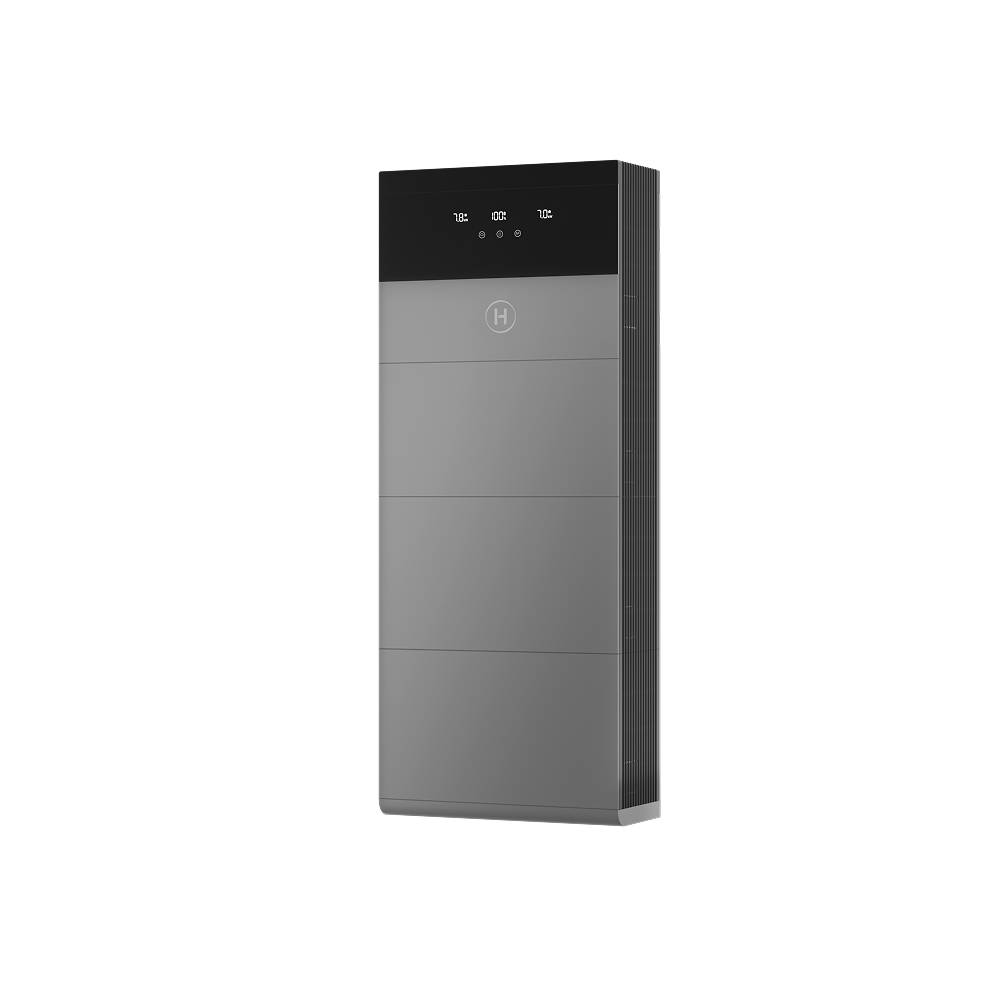

What Is the Hoymiles HiOne Solar Battery?
Hoymiles HiOne is a modular home energy storage platform combining the HiOne-8B-G3 battery module with compatible HiOne hybrid inverters. Solar electricity produced during the day can be stored for later consumption, helping households use more of the energy generated on their own roof.
Each HiOne-8B-G3 module provides 8kWh nominal storage and 7.8kWh usable storage under the manufacturer’s stated test conditions. Battery packs can be stacked and connected in approved system arrangements to suit different household energy needs.
The manufacturer specifies lithium iron phosphate (LiFePO4) chemistry, IP66 protection, built-in battery optimisation, self-heating technology for low temperatures and a 10-year warranty. Actual energy savings depend on solar generation, tariffs, consumption patterns and system design.

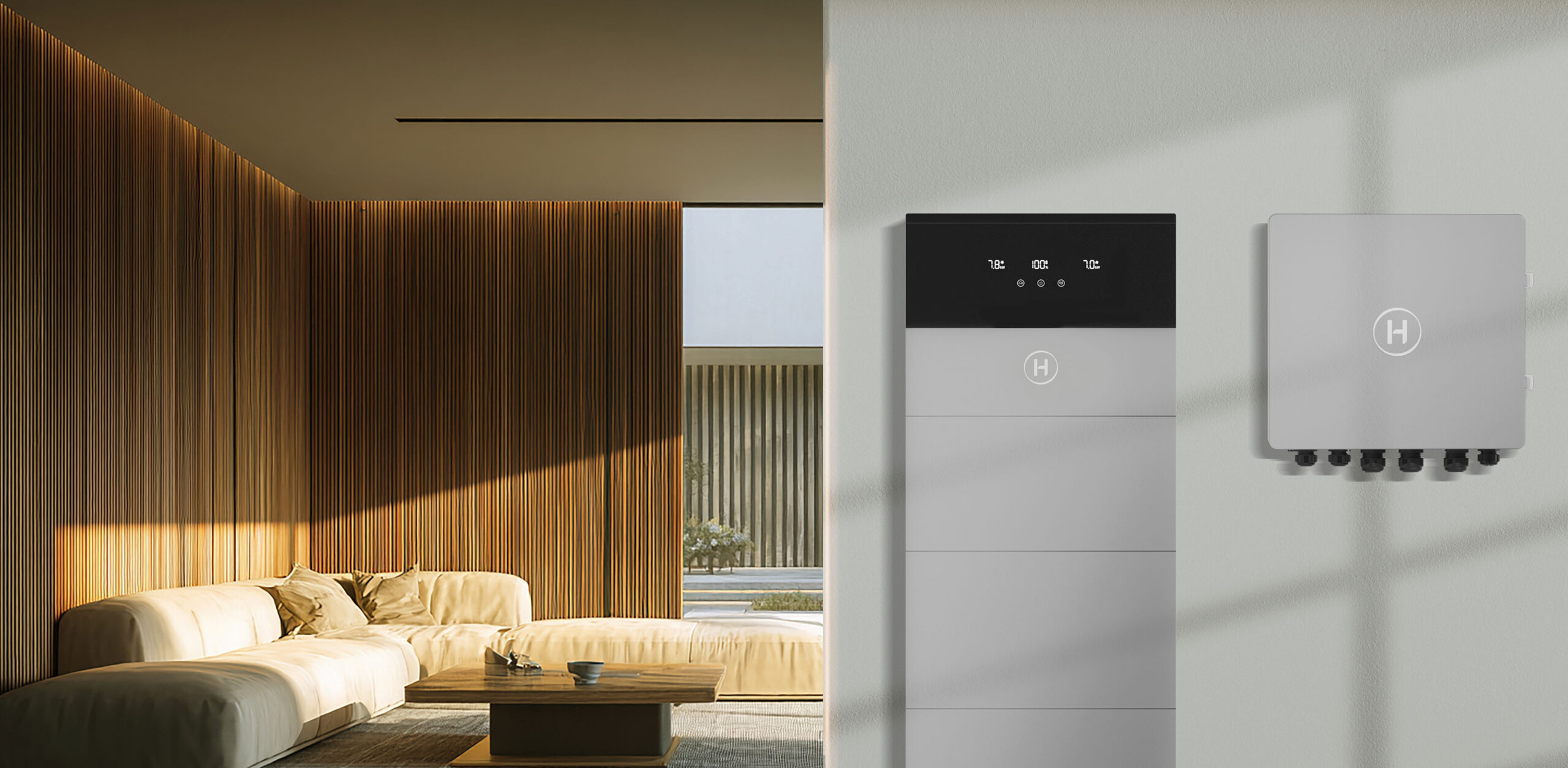

Designed for Modern Australian Homes
HiOne’s integrated design brings together inverter and modular battery components in a streamlined installation. Its indoor/outdoor-rated battery enclosure provides flexibility, although the final location must meet Australian installation and clearance requirements.
With compatible hybrid inverter and backup equipment, the system can be designed to support nominated essential circuits or broader household loads during grid interruptions.
Whether you are planning new residential solar or a solar and battery solution, ADS Solar can help assess the appropriate configuration.
Key Benefits of the Hoymiles HiOne Battery
Modular storage
Start with an 8kWh module and plan for expansion where compatible equipment and installation rules allow.
LiFePO4 technology
314Ah battery cells with manufacturer-specified 8,000-cycle cell performance under defined laboratory conditions.
Smart energy management
Built-in energy management in compatible HiOne hybrid inverters helps coordinate solar production, storage and use.
IP66 enclosure
Battery and inverter enclosure ratings are designed to resist dust and water ingress; installation siting still matters.
Backup options
Compatible HiSwitch models support whole-home or partial-backup system designs, subject to loads and configuration.
10-year warranty
The Australian HiOne datasheets state a 10-year warranty for the battery and listed inverter series; terms apply.
Hoymiles Battery Sizes: 8kWh, 16kWh, 24kWh, 32kWh and Up to 64kWh
HiOne uses 8kWh nominal modules. The battery datasheet permits up to four modules per tower and two parallel towers, subject to the inverter and system design. The table below is a capacity calculation, not a guarantee that every arrangement is suitable for every property.
| Modules | Nominal capacity | Calculated usable energy* | Configuration |
|---|---|---|---|
| 1 | 8kWh | 7.8kWh | Single module |
| 2 | 16kWh | 15.6kWh | Stacked modules |
| 3 | 24kWh | 23.4kWh | Stacked modules |
| 4 | 32kWh | 31.2kWh | One four-module tower |
| 6 | 48kWh | 46.8kWh | Multiple compatible towers |
| 8 | 64kWh | 62.4kWh | Two four-module towers |
*Usable values are simple multiples of the manufacturer’s 7.8kWh per-module beginning-of-life figure, not measured full-system outputs. Available energy and output power vary with temperature, operating limits and installation configuration.
How Much Battery Storage Do You Need?
Battery sizing should begin with your overnight electricity consumption, solar export, peak demand, tariff structure and backup priorities. A larger battery does not automatically produce better savings. ADS Solar can review your electricity bills and system requirements before recommending a capacity.
Hoymiles HiOne-8B-G3 Battery Specifications
| Battery model | HiOne-8B-G3 |
|---|---|
| Chemistry | Lithium iron phosphate (LiFePO4) |
| Cell capacity | 314Ah |
| Nominal / usable energy | 8kWh / 7.8kWh |
| Maximum charging / discharging power | 4kW per module |
| Peak discharge power | 6kW for 10 seconds per module |
| Depth of discharge | 100% under manufacturer’s stated conditions |
| Cell cycle-life figure | 8,000 cycles under specified cell test conditions |
| Module size | 620 × 360 × 255mm |
| Module weight | 67kg |
| Stack / parallel limits | Up to 4 per tower / 2 towers |
| Installation environment | Indoor / outdoor; IP66 |
| Charging/discharging temperature | −20°C to +55°C |
| Cooling | Natural convection |
| Warranty | 10 years, subject to terms |
Source: Hoymiles HiOne AU battery datasheet, page 4. The 8,000-cycle figure is a cell-manufacturer value measured at 25±2°C, 0.5C and 70% state of health; it is not a guarantee of 8,000 full-system cycles in every installation.
Single-Phase and Three-Phase Hoymiles Hybrid Inverters
The HiOne battery is specified for use with compatible Australian-market HiOne inverter models. Inverter selection determines grid connection, solar input and available output power.
| Specification | Single-phase HiOne S-G3-AU | Three-phase HiOne T-G3-AU |
|---|---|---|
| Models | 3.6, 4.6, 5, 6, 8, 10, 12 | 8, 10, 12, 16, 20 |
| Rated AC output range | 3.68–12kW (model-dependent) | 8–20kW |
| Maximum inverter efficiency | 98.0% | 98.5% |
| Battery model | HiOne-8B-G3 | HiOne-8B-G3 |
| MPPT inputs | 3 or 4, model-dependent | 3 or 4, model-dependent |
| Enclosure protection | IP66 | IP66 |
| Manufacturer-stated warranty | 10 years | 10 years |
The Australian single-phase datasheet lists 200% recommended DC/AC PV oversizing and up to 150% off-grid peak output for 10 seconds on supported models. The three-phase range also supports unbalanced three-phase output. These are equipment capabilities, not guarantees of unlimited household backup power.
Hoymiles HiSwitch Backup: Essential Loads or Whole-Home Design
The Hoymiles HiSwitch guide describes both whole-backup and partial-backup configurations. The Australian HiSwitch-100S-G3-AU is matched to HiOne single-phase inverter models, while HiSwitch-63T-G3-AU is matched to the three-phase range.
Partial backup
Selected circuits, such as refrigeration, lighting and internet equipment, may be designated as backup loads after an electrical assessment.
Whole-home backup
A whole-home switching arrangement may be possible, but the available power remains limited by inverter capacity, battery output and connected loads.
Automatic transition
HiSwitch auto mode manages transitions between grid-connected and off-grid operation in a correctly configured system.
Source: Hoymiles HiSwitch Quick Installation Guide, pages 3 and 5. Backup operation requires compatible equipment and compliant professional installation. It is not included by default in every battery quotation.
Hoymiles Battery Price Australia: What Affects Installation Cost?
The final installed Hoymiles HiOne battery price in Australia depends on the number of 8kWh modules, single-phase or three-phase inverter, whether you need new solar panels, backup switching, switchboard upgrades, mounting, cabling and site conditions.
Government incentives and battery rebates may affect eligible project costs, but eligibility and scheme rules must be confirmed at quotation time. The supplied manufacturer datasheets do not list an Australian installed price, so ADS Solar provides site-specific pricing rather than an unsupported advertised figure.
For broader pricing guidance, visit solar battery prices in Australia or compare solar battery pricing in NSW.
Hoymiles Solar Battery Installation with ADS Solar
ADS Solar helps Australian homeowners plan solar and battery installations based on their actual energy use and electrical requirements. A suitable Hoymiles system should be designed around:
- Existing solar array, inverter and roof capacity
- Single-phase or three-phase electrical supply
- Evening energy demand and planned future loads
- Backup circuit requirements and switchboard capacity
- Battery location, access, ventilation and applicable safety clearances
- Current Australian product eligibility, network approvals and rebate conditions
Learn more about solar and battery installation, residential solar systems and EV charging.
What About the Hoymiles HoyUltra 261A Commercial Battery?
Hoymiles also publishes a HoyUltra 261A commercial and industrial battery energy storage system with 261kWh nominal energy, 125kW rated output, liquid-cooled battery and power conversion equipment, and up to 90.3% stated round-trip efficiency.
Important Australian-market distinction: the supplied HoyUltra HESS-261-2h-US datasheet is explicitly marked North America and specifies 60Hz equipment. It does not establish Australian compliance or availability. ADS Solar should only quote an Australian-suitable commercial model after confirming current manufacturer documentation, network requirements and local approvals.
For business projects, enquire about ADS Solar commercial energy solutions.
Frequently Asked Questions About Hoymiles Batteries
How much does a Hoymiles battery cost in Australia?
Pricing depends on capacity, compatible inverter, backup equipment and installation complexity. Request a tailored ADS Solar quote for an installed price.
How much usable energy does an 8kWh HiOne battery provide?
The manufacturer states 7.8kWh usable energy per HiOne-8B-G3 module at beginning of life under defined test conditions.
Can I install a 16kWh or 32kWh Hoymiles battery?
Yes, the modular system supports multiple 8kWh modules in compatible arrangements. A two-module configuration is 16kWh nominal and a four-module tower is 32kWh nominal.
Can Hoymiles HiOne expand to 64kWh?
The datasheet lists up to four modules per tower and two parallel towers, representing 64kWh nominal maximum in a compatible eight-module configuration. Final suitability must be assessed.
Does Hoymiles HiOne work with three-phase homes?
The Australian HiOne three-phase inverter range includes 8kW, 10kW, 12kW, 16kW and 20kW models compatible with HiOne-8B-G3 batteries.
Can a Hoymiles battery power my home during a blackout?
Backup can be configured using a compatible HiSwitch device and appropriate electrical design. The circuits and appliances supported depend on the battery, inverter and load requirements.
Is Hoymiles suitable for outdoor installation?
The HiOne battery datasheet lists indoor and outdoor installation with IP66 protection. The actual location must comply with relevant Australian installation standards and manufacturer instructions.
What warranty comes with Hoymiles HiOne?
The Australian HiOne battery and inverter datasheets state a 10-year warranty. Check the applicable Australian warranty document for exclusions and conditions.
Explore Hoymiles HiOne Battery Storage with ADS Solar
Considering an 8kWh, 16kWh, 32kWh or larger Hoymiles solar battery system? Talk to ADS Solar about storage sizing, hybrid inverter selection, backup options and a professional installation quote.
Request a Quote Call 1300 812 911
Product specifications are based on the supplied 2026 Hoymiles Australian HiOne datasheets and HiSwitch guide. Product availability, grid eligibility, pricing and technical specifications should be verified before publication or sale.
